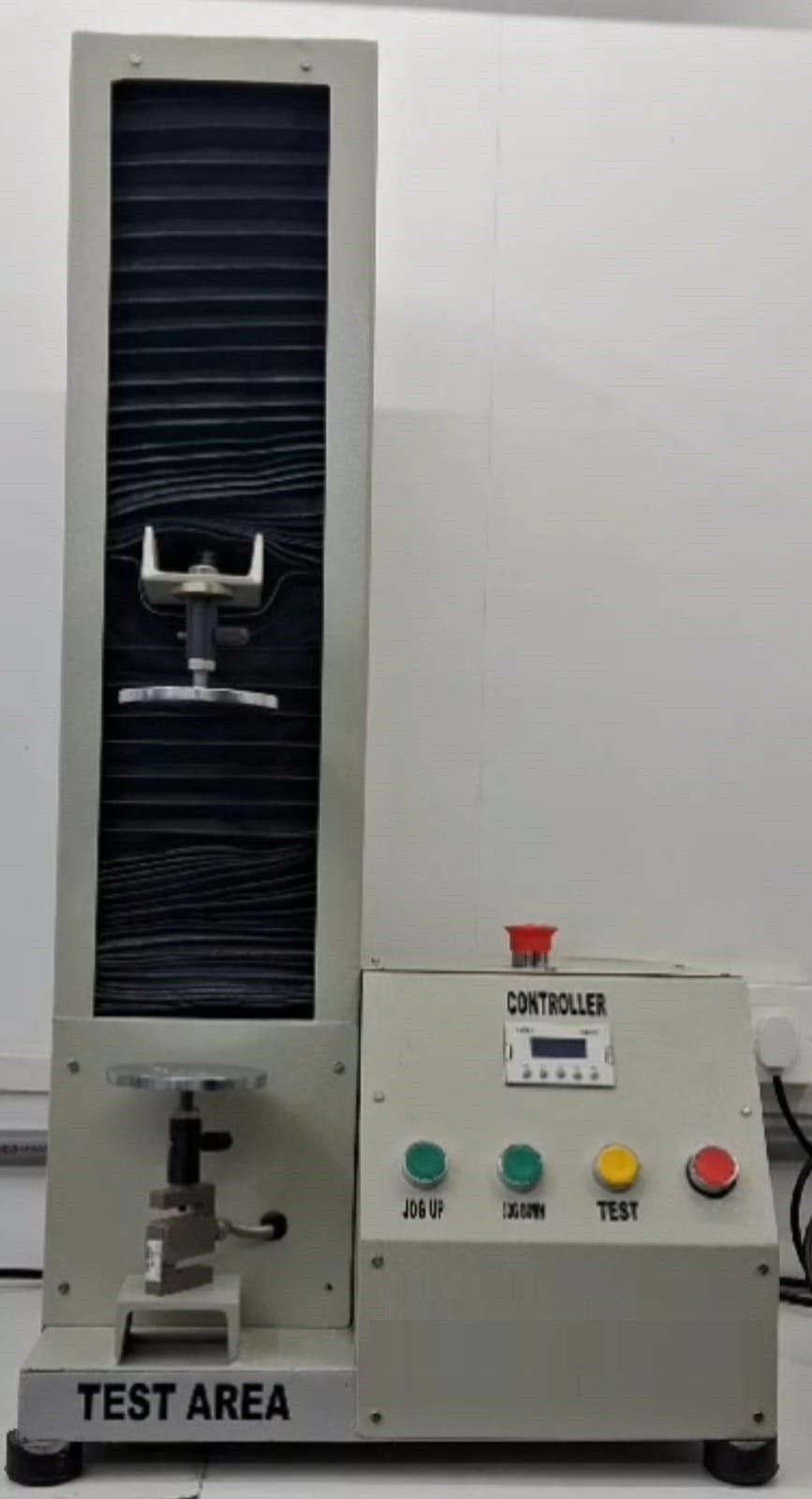

Mini UTM with stepper motor and gear box.

The machine will have Mechanical clamps to hold samples.

With acme thread nut and drive.

A digital indicator with auto peak hold will be provided to read in extension & compression modes.

The machine will have a tripper switch, a forward and reverse switch and adjustable limit switches.

Reading range up to 100kgs, with 200 grammes least count with accuracy of 0.5kg.

Cross head distance 250m.m. stroke length.

Speed of cross head 50m.m. /per min. The machine will have a single ball screw mechanism.

Attachment for ring crush and edge crush.

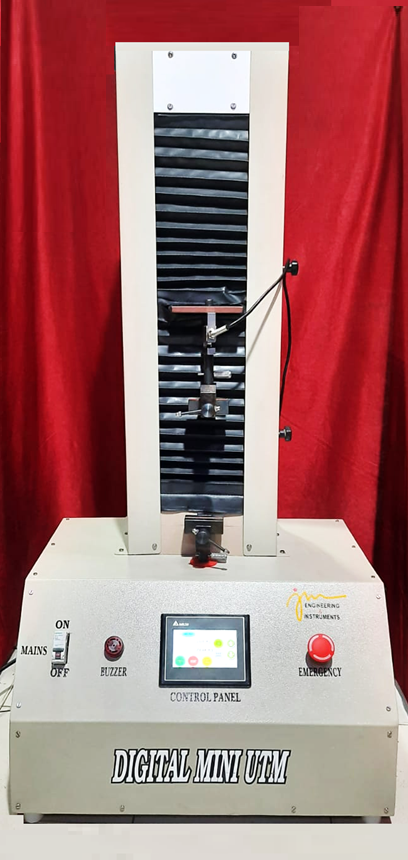

Tensile tester digital with stepper motor and drive connected to a ball screw and gear box.

The machine will have Mechanical clamps to hold samples.

A Human Machine Interface with auto peak hold will be provided to read in extension & compression modes.

The machine will have a tripper switch, a forward and reverse switch and adjustable limit switches.

The machine will be covered in a mild steel cover and will be powder coated.

Reading range up to 200 kgs, with 100 grammes least count.

Four preset speeds will be provided by rotary knob & one up & down high speed will be provided for JOG of moving clamp.

The machine will be able to perform various test with the following attachments: Attachments included for Ring Crush Test, Edge Crush Test, Peeling Strength Test, Tensile Strength Test, and Bottle Crush Test.
