For testing bursting strength of corrugated board, duplex board, & aluminum foil.
The machine is completely covered in Mild steel, powder coated cover, with Digital Indicator.
The machine has a ‘illuminated ON/OFF switch, a push button switch to pressurize the test area for bursting the sample.

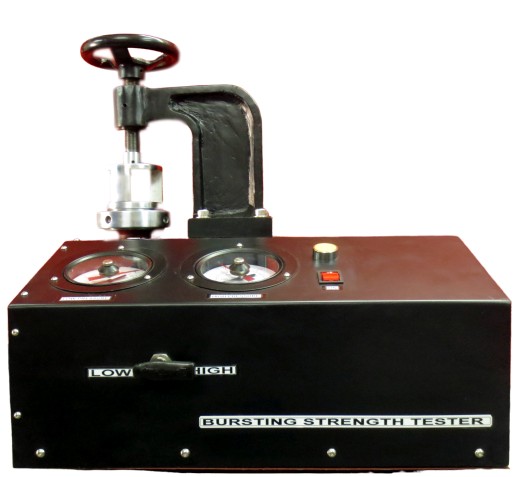

For testing bursting strength of corrugated board, duplex board, & aluminum foil.
The machine is completely covered in Mild steel , powder coated cover, with 2 gauges, one for low pressure and high accuracy 1 kg/cm² to 14 kg/cm² (least count 0.1 kg/cm² for checking of craft paper, and thin aluminum foil less than 5micron), and one for high pressure, with capability of reading from 1 kg/cm² to 40 kg/cm²(least count 0.5 kg/cm² for checking of duplex board & corrugated board up to 7 ply and thin aluminum foil up to 10 micron).
The machine has a ‘illuminated ON/OFF switch, a push button switch to pressurize the test area for bursting the sample.
When the test is done on releasing the test button the burst area automatically gets depressurized .
For testing bursting strength of corrugated board, duplex board, & aluminum foil.
The machine is completely covered in Mild steel , powder coated cover, with 2 gauges, one for low pressure and high accuracy 1 kg/cm² to 14 kg/cm² (least count 0.1 kg/cm² for checking of craft paper, and thin aluminum foil less than 5micron), and one for high pressure, with capability of reading from 1 kg/cm² to 40 kg/cm²(least count 0.5 kg/cm² for checking of duplex board & corrugated board up to 7 ply and thin aluminum foil up to 10 micron).
The machine has a ‘illuminated ON/OFF switch, a push button switch to pressurize the test area for bursting the sample.
When the test is done on releasing the test button the burst area automatically gets depressurized.

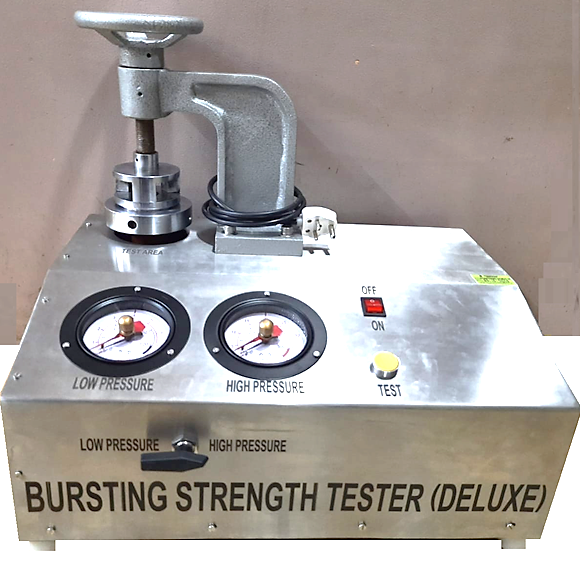

For testing bursting strength of corrugated board, duplex board, & aluminum foil.
The machine is completely covered in stainless steel buffed cover, with 2 gauges, one for low pressure and high accuracy 1 kg/cm² to 14 kg/cm² (least count 0.1 kg/cm² for checking of craft paper, and thin aluminum foil less than 5micron), and one for high pressure, with capability of reading from 1 kg/cm² to 40 kg/cm²(least count 0.5 kg/cm² for checking of duplex board & corrugated board up to 7 ply and thin aluminum foil up to 10 micron).
The machine has a ‘illuminated ON/OFF switch, a push button switch to pressurize the test area for bursting the sample.
When the test is done on releasing the test button the burst area automatically gets depressurized.
For testing bursting strength of corrugated board, duplex board, & aluminum foil.
The machine is completely covered in stainless steel buffed cover, with 2 gauges, one for low pressure and high accuracy 1 kg/cm² to 14 kg/cm² (least count 0.1 kg/cm² for checking of craft paper, and thin aluminum foil less than 5micron), and one for high pressure, with capability of reading from 1 kg/cm² to 40 kg/cm²(least count 0.5 kg/cm² for checking of duplex board & corrugated board up to 7 ply and thin aluminum foil up to 10 micron).
The machine has a ‘illuminated ON/OFF switch, a push button switch to pressurize the test area for bursting the sample.
When the test is done on releasing the test button the burst area automatically gets depressurized.

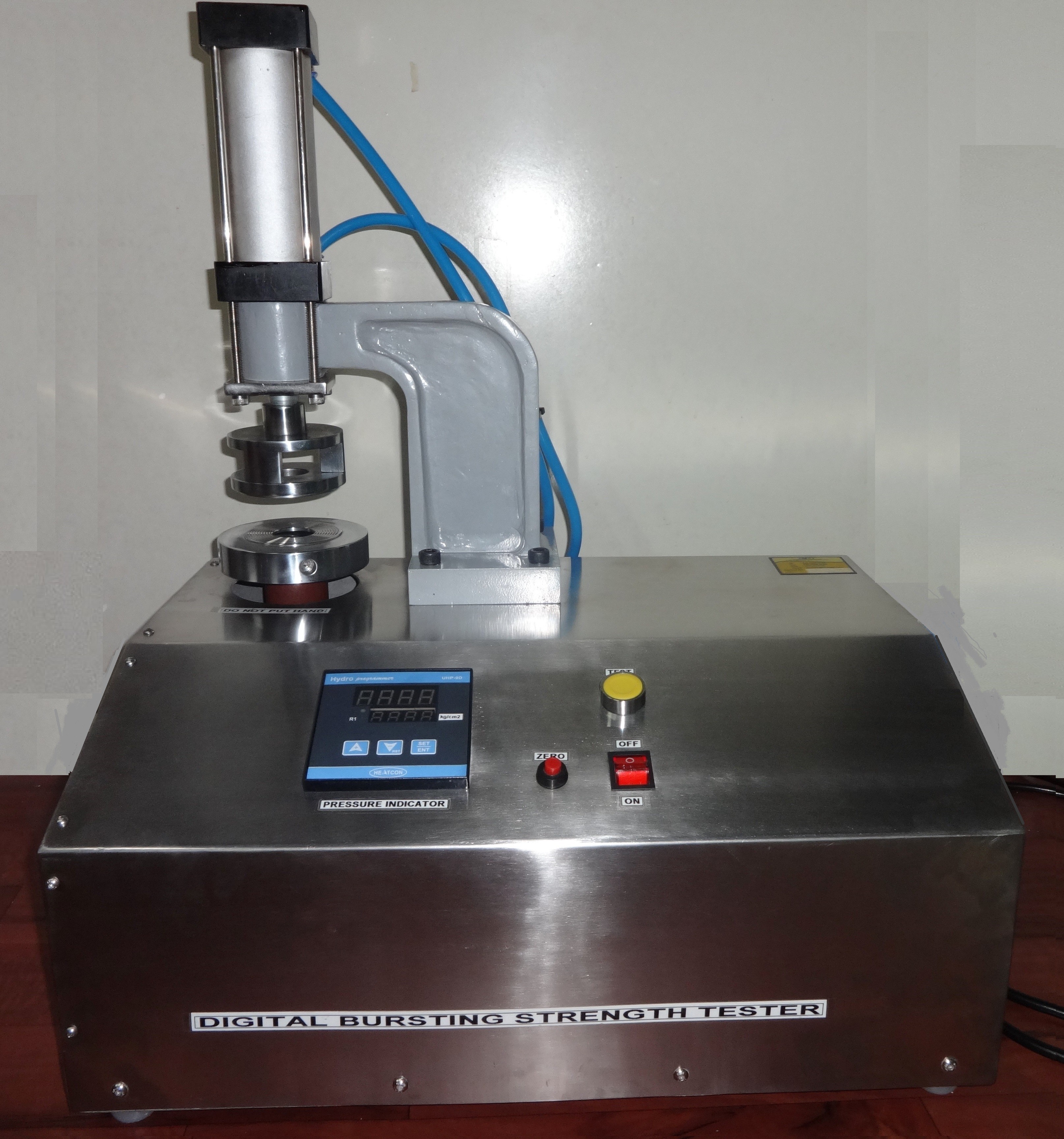

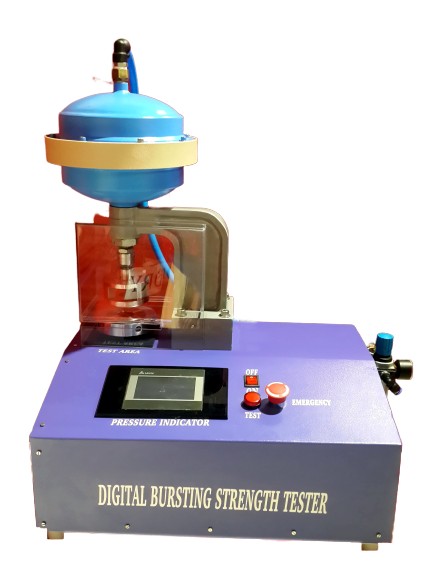

Bursting strength tester, for testing bursting strength of craft paper, corrugated board, duplex board, and aluminium foil up to 15micron.
Completely covered in stainless steel. Microprocessor based, with digital L.E.D. display.
With auto peak hold, and also with inbuilt pressure transducer with an accuracy of 0.1 kg/cm² and a maximum pressure reading of 50 kg/cm²The machine has a ‘pressurize’ indicator, a power indicator, a push button switch, and a master switch for safety.
The test sample is clamped in the test area by an automatically operated .
